How I selected new Grand Vitara wheels and tyres

Choosing the best new 4×4 tyres takes a lot of research and tradeoffs, but I’m happy with the end result.

I AM NOT about to preach to the converted about offroad tyres, rather talk you through my logic of wheel and tyre selection for my Grand Vitara. Being a top-of-the-range 2010 Prestige it was sold with attractive, but offroad unfriendly 18” wheels with 225/60/R18 highway tyres that needed to come off the car as soon as possible.

Want to know the basics of 4×4 tyre choice? Read more: All you need to know about buying a 4×4 tyre

There are several reasons for the change. I wanted:

  • As much sidewall as possible so that I can let the pressures down safely with less worry about damaging the tyres or wheels;
  • Protection from damage for the wheels that comes with increased sidewall;
  • A decent selection of offroad-oriented tyres in Light Truck (LT) construction for load carrying and puncture-resistance. Highway tyres are not suitable for my 4×4 purposes;
  • A little bit of extra height and clearance in addition to my lift.

But I also have a few criteria:

  • 16” wheels preferred, 17” if I can’t find suitable 16s;
  • Preference for OEM wheels rather than aftermarket if they are cheap enough;
  • Alloy rather than steel for strength, weight and aesthetic reasons. Also, alloy wheels give the brakes more room to breathe;
  • A set of five so the spare matches.

Incidentally, the spare looked in perfect condition. It wasn’t though, it was still the original tyre from 2010 so it was seven years old, too old to be useful even though it had never been run on the road.

Choosing the right size

The first thing to do was to figure out what sized tyre I wanted. The stock size is 225/60/18, which has an overall diameter of 727mm – calculated by (225 * 0.6 * 2) + (18 x 25.4) – two tyre sidewall heights that are 60% of the 225mm width, and 18 inches of wheel by 25.4mm per inch.

I can’t go more than 50mm taller, and to be honest I wouldn’t want to for a vehicle this small, so I am looking at overall diameters of 750mm or less.

The law says the load rating of the tyre must be the same or greater than on the vehicle’s placard, and that’s 100, or a load rating of 800kg. As the Grand Vitara is a 4WD categorised as MC under the ADRs, it’s allowed a lower speed rated tyre than its placard of H, all the way down to N rated.

Choosing the tyre

The first thing I did was narrow down the tyre that I wanted. There was no point in looking for a wheel if my chosen tyre wasn’t available in an appropriate size. While temptation would draw me to look at wide tyres that I’m told would fit for a more aggressive look, my sensible side told me to look at a tyre around standard width, but in a higher profile. The big question was did I need an All Terrain or a Mud Terrain tyre? Surprisingly this has been quite a hard decision that I’ve sat on for a month or more.

Once my Grand Vitara is sufficiently modified I expect that it should spend maybe 20% of its time offroad. My estimations could be out, but that’s what I have to work with right now when I’m choosing a tyre. I plan to use it for proper offroad touring with any number of variance in surfaces – dirt, mud, clay, rocks, water, etc. But the remaining 80% of the time it’ll be driven onroad for short runs and the occasional long trip. I can deal with a noisy tyre, that can be fixed by turning the stereo up a bit louder as the NVH is nothing to write home about at the moment and performance is more important to me than comfort. So a serious offroad tyre is on the cards as I will probably drive less than 10,000kms per year, so I might use the tyre up through age not wear.

I wanted a proven tyre from a reputable manufacturer and one that came recommended by friends since I’m new to offroad tyre buying. Cooper Tires got a good wrap from a few people I know and I liked driving with them on Robert’s Ranger, so I began to look at their range.

Here’s a table I made to help decide, showing overall diameter and effect on ground clearance.

Tyre Tread pattern Construction Width (mm) Profile (%) Wheel (inches) Overall diameter (mm) Overall diameter (inches) Diameter diff to stock (mm) Ground clearance increase (mm)
Stock Road Passenger 225 60 18 727 28.6 0 0
A/T3 Heavy Duty AT Light Truck 225 75 16 744 29.3 17 8
ST MAXX AT Light Truck 225 75 16 744 29.3 17 8
STT PRO MT Light Truck 225 75 16 744 29.3 17 8
A/T3 Heavy Duty AT Light Truck 245 75 16 774 30.5 47 23
ST MAXX AT Light Truck 245 70 16 749 29.5 22 11
ST MAXX AT Light Truck 245 75 16 774 30.5 47 23
STT PRO MT Light Truck 245 75 16 774 30.5 47 23

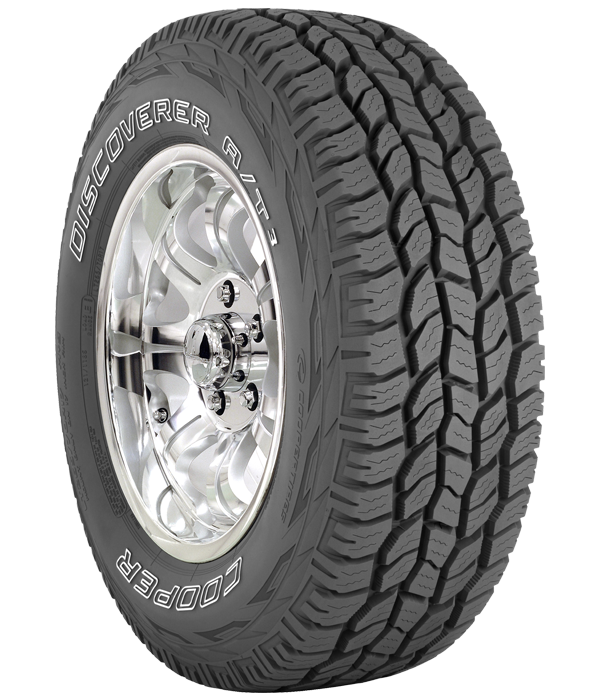

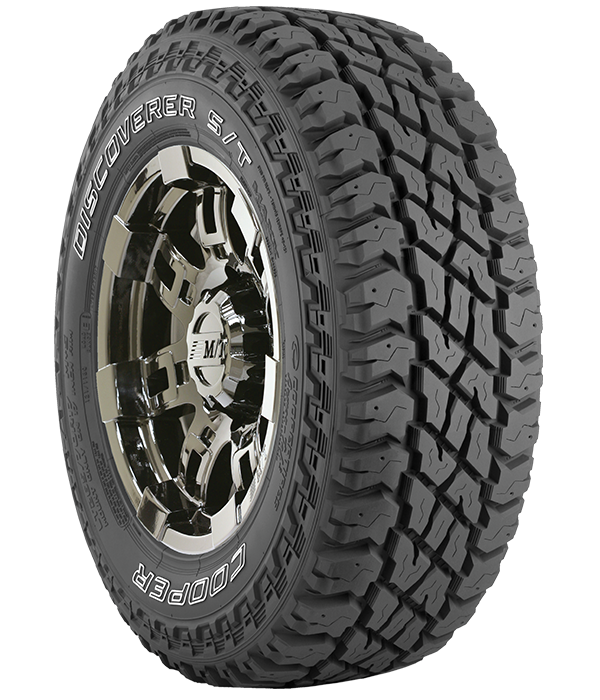

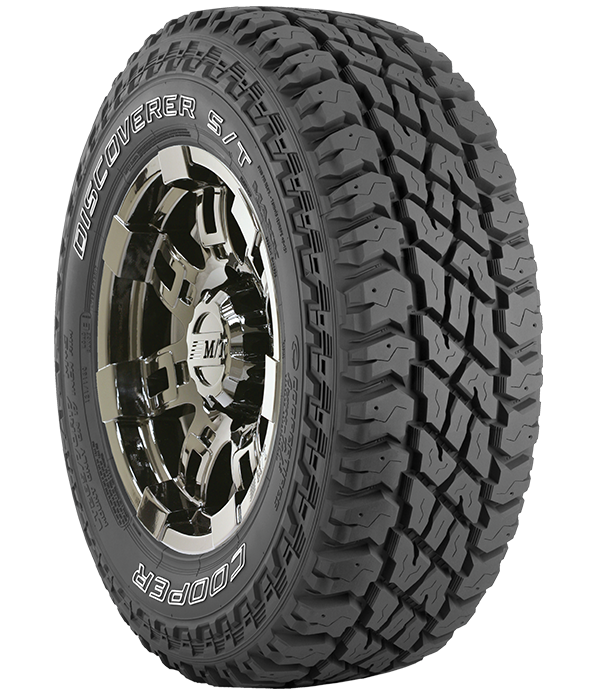

There were two that stood out at the aggressive end of their All Terrain range; Discoverer A/T3 Heavy Duty and Discoverer S/T MAXX. In Mud Terrain there was one choice, Discoverer STT PRO. All three options were available in the size that I wanted – 225/75/R16. This size would provide me with a moderate 17mm increase in diameter translating to an extra 8mm or so of ground clearance to complement my Ironman lift. Any wider than the stock size came with possible drawbacks; fouling on the guards, increasing unsprung weight and increasing fuel consumption. A wider tyre wouldn’t give me any greater contact patch either compared to a narrower tyre.

Any taller tyre would start causing even more stress on the car including putting the suspension and bushes at more acute angles, changing gearing significantly and if I went tall enough issues with the law. It just wasn’t worth it for a little bit of extra clearance when clearance is now over 230mm and no longer what is halting my progress on tracks. That’s mainly down to lack of traction, which the new tyres would improve, and departure angle by being hung up on the towbar, which still needs a solution.

On Cooper’s website the Discoverer A/T3 Heavy Duty states “60% Road & Sand, 40% Dirt & Mud” and the Discoverer S/T MAXX “50% Road & Sand, 50% Dirt & Mud” – all-in-all, for pretty similar uses. The S/T MAXX looks a bit more aggressive on the sidewalls and I’ve had experience with it on the Ranger.

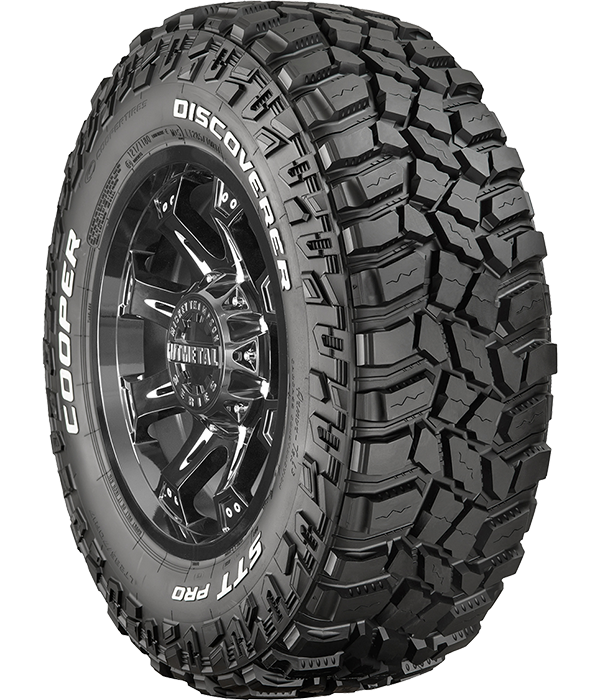

The Discoverer STT Pro states “80% Dirt & Mud, 20% Road & Sand”. The latter isn’t exactly my intended use division, however it would be the superior offroad choice for strength and traction, and given my limited kilometers it is likely to wear out in age before it wears out in tread. I can deal with the additional noise, and any differences in onroad handling shouldn’t cause me issues as I’m a smooth, calm onroad driver these days. I leave my fun for racetracks and bush tracks. And these days, modern mud-terrains are more ‘daily driveable’ than ever before.

Looking at the tyres side-by-side you can really see the difference as they step up in offroad ruggedness. Discoverer STT PRO Mud Terrain tyres it is. The car will look suitably aggressive with these bad boys!

Choosing my 4×4 wheels

With the tyre and size chosen I still had the wheel dilemma. When replacing wheels this is what you need to look for:

  • Diameter – not so small it won’t clear brake calipers or fouls any other part. To stay on the right side of the law, no smaller than the smallest diameter that was offered for the car.
  • Stud pattern – has to be the same. Otherwise you’re looking at changing the hubs or running PCD conversion spacers, which are in most cases illegal, increase the track and offset and introduce another point of failure.
  • Load rating – must meet or exceed that of the OEM wheels. Just because something fits, doesn’t mean it was intended for a vehicle that heavy.
  • Offset – close to stock offset is good if you’re not increasing width. It lessens the chance of fouling any part of the car.

Most of the secondhand alloy wheels from lower model Grand Vitaras were 17”, and that was too large a diameter for my liking as the Grand’s tyres are only 727mm tall compared to about 830mm for a larger 4×4 like a Ranger.

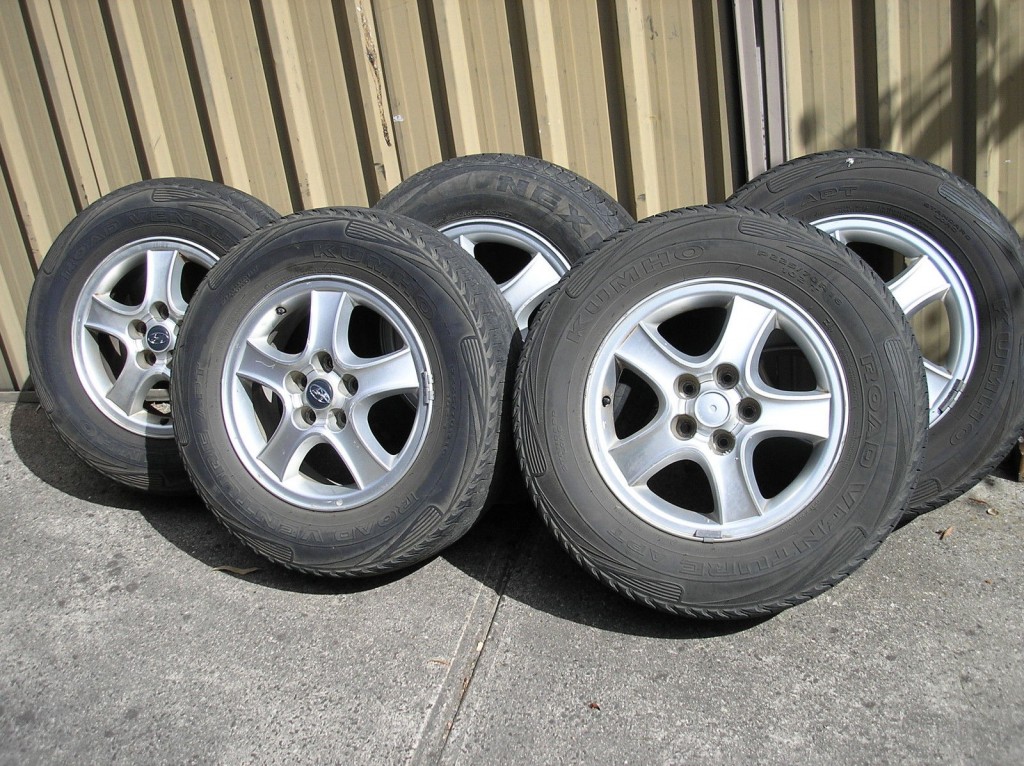

Most of the 16” wheels I found were steel, or alloys but not a complete set of five. So I broadened my scope a little bit. I didn’t want to spend much – the wheels would likely get scratched offroad so I needed something that I wouldn’t be too precious about. Conveniently the Grand Vitara runs a 5×114.3 stud pattern which is very common for SUVs. Wanting to spend around the $200-300 mark on secondhand OEM alloy wheels I headed to online auction sites and stumbled upon a suitable set of five wheels in Victoria – 2003 Hyundai Santa Fe wheels in 16×6.5” +46 offset with roadworthy tyres.

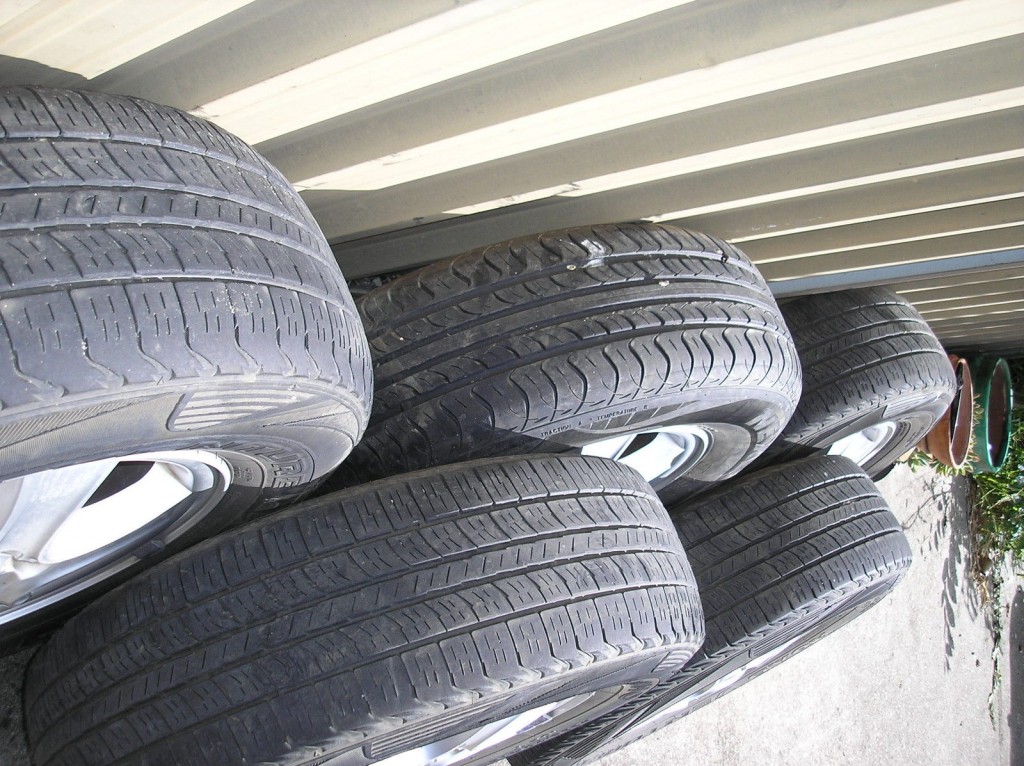

Although I didn’t need the tyres they could be taken off and sold, along with the 18″ wheels and tyres currently on my Grand to make some money back. At $220 I couldn’t really go past them. Once I remove Hyundai off the centre caps no-one would take a second look and think that they’re from another manufacturer. Maybe I’ll spray the whole wheel black too…what do you think?

Stay tuned for an update once the wheels and tyres have been on for a little while, and a comparison between old and new.


  1. Take5
    October 20, 2017 at 6:41 pm — Reply

    Very good Juliette. ..I enjoyed reading your story.
    I like the way you deal with NVH noise issues….. and a decent stereo certainly helps.
    Look forward to reading more….would like to hear more about your Grand Vitara too, as I am considering a similar model, for I suspect, similar purposes. V6 ?
    Though, I must admit, I am not as scientific in my approach.

  2. December 21, 2017 at 5:11 am — Reply

    Nice read, however, do you have anything to say about the speedometer not providing accurate measurement? If the diameter is bigger the speedometer will provide us a speed slower than the real one, not to mention that at long term the odometer will give the wrong distante as well.
    I’m really interested o getting some AT tires on my Suzuki Vitara 2016, but this little issue is the deal breaker for me.
    Do you know if it is possible to change the tire size in the car computer?

    • Juliette Remfrey
      December 24, 2017 at 10:44 pm — Reply

      Hi Arturo, I wouldn’t think so. It doesn’t really bother me, and as the speedo under-reads anyway I’m closer to actual speed with this tyre size (measured by GPS).

    • August 20, 2020 at 3:01 am — Reply

      I know that the tyre size can be calibrated on other cars, so it should be possible.might need to be done buy a dealer or by someone who has access to an ‘ECU programmer’

  3. August 20, 2020 at 3:03 am — Reply

    Nice article and helpful. Do you have an update, as we might be up to the same challenging decisions soon…!

    • August 20, 2020 at 4:56 pm — Reply

      Hey Jack, I’m not on this site anymore. You can keep up with my adventures on my page:


      Glad you liked the guide. I ended up selling the 225/75/16 muddies after 18 months. The on-road handling and noise just weren’t bearable any longer. I had to raise my voice to talk to a passenger it was that loud. I went to 245/70/16 BF Goodrich KO2 all terrains and they’ve been absolutely brilliant. Offroad traction, I’d say they get me just as far offroad almost as easily as the muddies (and better on sand), but I tend to drop to low pressures any time I’m offroad and don’t bother starting higher (15-20PSI on rocks, 15-20PSI on snow, 15PSI on mud, 12-15PSI on sand).

      245/70/16 are heavy to steer, slow acceleration and reduce your fuel economy but you get used to it, and with the 3.2L V6 in mine it’s not an issue.

      I’m debating whether I stick with 245/70/16 next time I’m up for tyres (a long way off due to COVID-19 and rarely driving the car) or go back to 225/75/16, because honestly, the extra width is completely unnecessary on these cars (but looks tougher if that matters to you).

      I’d get the BFGs again. Pricey, but worth it.
